Concealed Brush Strips
Seal Code: ES–CBS

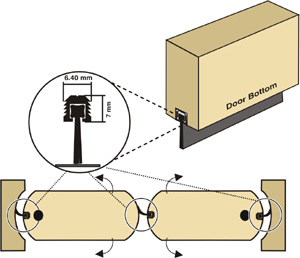

For the bottom of the doors :

This Brush Strip is fixed after making a groove, in a timber door.
Location
:
Door Bottom, Sides & Top
Application
:
Single / Double Swing Doors, Head of Rollers Shutter Door & Sliding doors.
Min/Max Gap
:
13 mm
Lengths
:
3 feet to 10 feet
Finish
:
Aluminium mill finish

Floor Hinge Type double side opening doors

Two way open able, double leaf doors. install concealed brush strip on the two sides of door & on the central meeting stile of one door. Order for these seals is given in the same way.






Application on the Timber Windows & Doors. Compression Sliding Seal of pile Height 6.5 mm


available in roll form and can be cut to size and inserted.
Black colour.


Choice between -Without the Fin or with Fin Seal
