CATS – 4 : Surface Mounted Drop Seal
Seal Code: ES–CATS-4

For External / Exposed Application
CAT- 4 Activation

CATS - 4 was launched after getting the feed back from our customers as they wanted to have these drop seals for their existing doors and wanted to install them without removing
the doors or without making a grove in them.

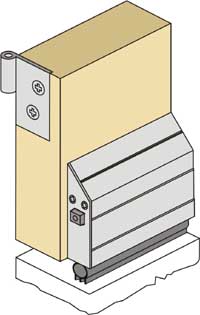

Exposed Face Mounted Automatic Drop Bottom seal with unique concealed fixing method

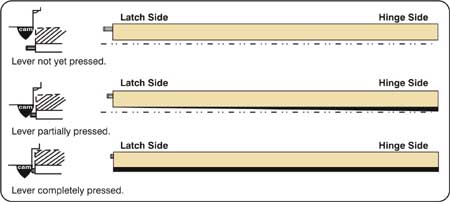

this profile is spring loaded to lift clear of the floor as soon as the door leaf is opened by a
few millimeters. It is operated automatically by pressure against the door jamb on
its adjusting screw

Location
:

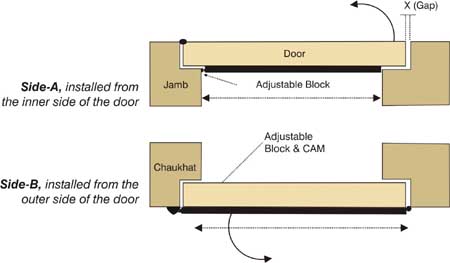

 Single and double hinged - Timber or Metal Doors.Inside or Outside application .
Min/Max Gap
:
 1 mm / 20 mm
Sizes Available
:
 500 mm to 2000 mm. ( customized as per requirements )
Standard Finish
:
 Anodized Satin Clear / Bronze Finish
Fixing Method
:
 Screws of the appropriate size are provided with every seal.
